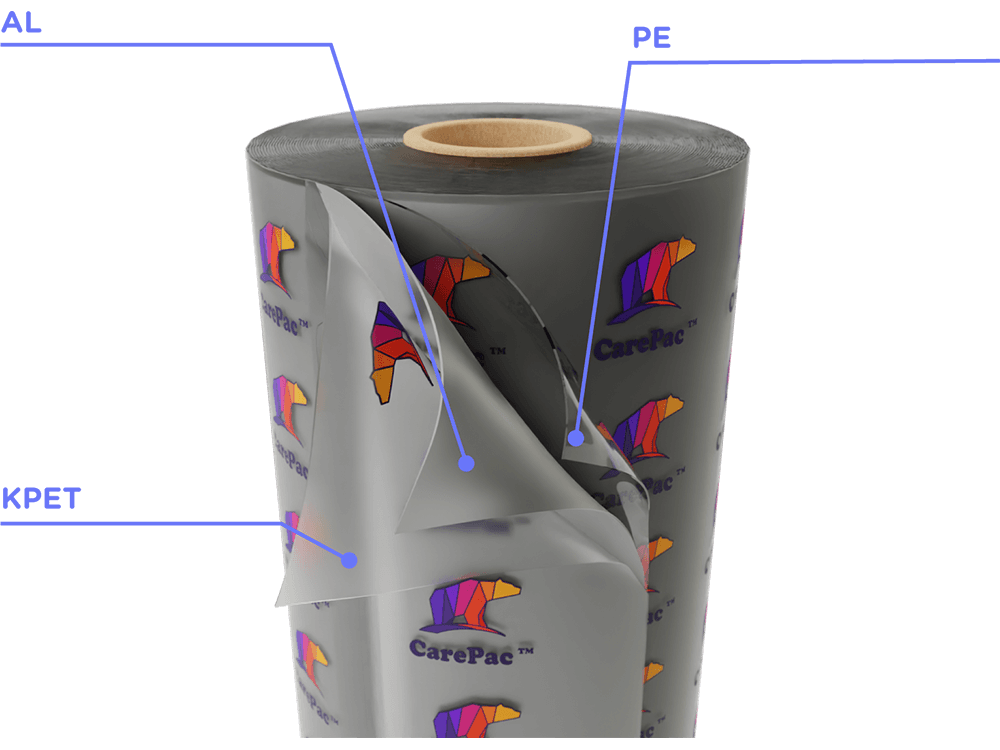

CareFoil-XAP
Overview
This film is a multi-layer laminated film that combines strong and durable KPET with high barrier aluminum foil material designed for high barrier food and industrial applications. CareFoil-XAP adds PVDC coated PET to the base Carefoil PET/foil/PE structure. This FDA approved film does not stretch due to the orientation of layers during the laminating process. This film is often used when a die cut window is added to a pouch to offset the loss of barrier from adding a window into the Aluminum foil. High barrier application such as freeze dried foods, industrial powders and light sensitive contents.
Note: The performance of any film will be influenced by a number of factors and testing must always be performed to ensure the film meets the use.
Relative Performance Indications
Oxygen Barrier
Moisture Barrier
Light Barrier
STrength
Heat Resistance
Freezer Storage
Material Data
Here are some of the common indicated properties for this film.
|
ITEM |
VALUE/RESULT |
|---|---|
|
Material Composition |
KPET/Alu/LLDPE |
|
Available Thickness Range |
4 – 8 mil |
|
Tested Caliper Thickness |
4.0 mil (film) ~ 5.18 mil (converted) |
|
Tested As |
Film and converted 130x205x65 @ 5mm 130um |
|
MVTR – Film |
0.0003 (film), 0.06 (converted) gms/1002 in./24 hrs |
|
OTR – |
0.0006 (film), 0.07 (converted) cc/1002 in./24 hrs |
|
Tensile Strength |
>80 N/mm2 |
|
Thrust Strength |
3.5J |
|
Elongation at Break |
250% (MD), 150% (TD) |
|
Tearing Strength |
15 (MD), 12 (TD) N |
|
Sealing Strength |
70(L), 70(R), 89(B) KGF/15mm |
|
SR 817.023.021 |
Not in excess of overall or specific migration |
|
Prop 65 (OEHHA) |
Does not contain listed substances |
|
RoHS Directive 2011/65/EU |
PASS |
|
Residual Solvent (converted total) |
PASS <=0.002 (<.4 standard) |
All values indicated regarding film properties or characteristics, were provided by our film supplier and are given as an indication and should be considered as average indicative values. This document is based on our film supplier statements and / or independent lab testing, data from multiple tests, or different film suppliers of the same film family may be combined in the above table. While unexpected, it is possible that the validity of the statements could change without notice.
Environmental Impact
This material is a multi-layer laminated plastic and will typically fall into the check-locally, or store drop off category.
Property |
Sample Data |
|---|---|
|
Recyclable |
Multi-Layer Check Locally |
|
PCR Option Available |
Yes |
|
At Home Compostable |
No |
|
Commercial / Industrial Compostable |
No |
Recyclability and composability varies by jurisdiction. Composability claims are limited by law, and vary by jurisdiction, consult a qualified professional in your state.
Compliance
Compliance is important, and here are CarePac we can support your compliance needs with extensive film supplier and lab testing data.
BPA FREE
FDA Food Approved
PROP 65
Property |
Sample Data |
|---|---|
|
CEPE/EuPIA |
Manufactured in accordance with |
|
Cal. H&S (25214.16) |
Compliant |
|
PFAS – perfluoroalkyl and polyfluoroalkyl § 37-0209, RCW 70A.222.070 |
Does not knowingly add |
|
Prop 65 (OEHHA) |
Does not contain listed substances |
|
SR 817.023.021 |
Not in excess of overall or specific migration |
|
EU directive 10/2011/ED |
Compliant |
|
EU directive 1935/2004 |
Compliant |
|
FDA 21 CFR 73 |
Compliant |
|
RoHS Directive 2011/65/EU |
PASS |
Compliance information above is derived from lab testing, or film supplier statements. Independent verification is advised, and Lot specific testing available.
Related Materials
Carefoil-PANP
This film is a multi-layer laminated BIAX film that is a strong high barrier aluminum nylon combination built for tough food and industrial applications. High barrier applications such as freeze-dried foods, MRE and similar pouches.

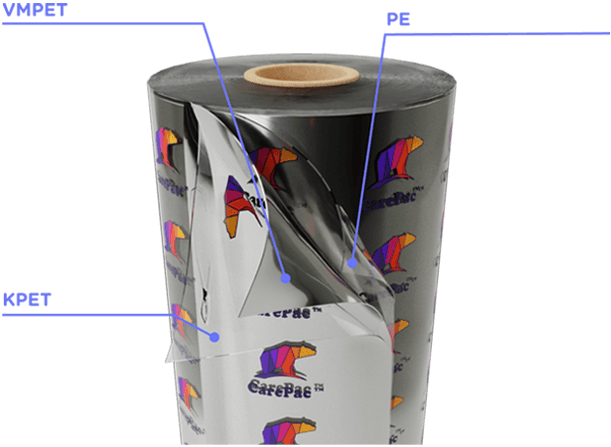

CareSilver-XVP
